Hauler HL32

Flatbed or box, single or double cab.

Seats: 2
Range: 90 km 56 mi
Top speed: ≤ 30 km/h ≤ 19 mph · adjustable
Motor: 7.5 kW 72 V AC

About the Hauler

The work truck. Two wheelbases, each available as a single or double cab, with an open half-top or a closed cab, and either a flat deck or a drop-side cargo box.

Overall4920 x 1500 x 2095 mm193.7 x 59.1 x 82.5 in
SeriesHaulerUtility & Cargo
Seating2–5configurable

2025 model year

Full specification

Reproduced in full from the manufacturer's configuration sheet, revision 20250901. Imperial values are converted, not separately measured. First-party specification; not independent validation.

Flat deck, open cab · 2 seats

Hauler HL32 — Flat deck, open cab · 2 seats specification
Overall L x W x H	4920 x 1500 x 2095 mm193.7 x 59.1 x 82.5 in
Wheelbase	2770 mm109.1 in
Seating capacity	2
Kerb weight	1300 kg2866 lb
Gross vehicle weight	2445 kg5390 lb
Track, front / rear	1300 / 1300 mm51.2 / 51.2 in
Ground clearance	140 mm5.5 in
Turning radius, outer	≤ 6.5 m≤ 21.3 ft
Cargo deck	3220 x 1500 x 300 mm (stainless steel stake sides)126.8 x 59.1 x 11.8 in (stainless steel stake sides)
Range	90 km56 mi
Top speed	≤ 30 km/h, adjustable≤ 19 mph, adjustable
Max gradient, laden	≤ 15%
System voltage	72 V
Motor	72 V 7.5 kW three-phase AC induction motor, copper-wound, high torque and low noise
Controller	72 V 450 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping
Battery	Twelve 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries
Charger	On-board intelligent high-frequency charger, 220 V AC input, 72 V DC / 25 A output
Charge time	8 hours
Chassis	High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat
Front axle and suspension	MacPherson strut independent front suspension, coil springs with hydraulic dampers
Rear axle and suspension	Solid rear axle on leaf springs with hydraulic dampers
Brakes	Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance
Steering	Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance
Tyres and wheels	165/70R13C tubeless radial tyres on steel rims
Body	High-strength composite body with an injection-moulded PP front cowl for impact resistance
Canopy	Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant
Roof pillars	Custom aluminium pillars — high strength, corrosion-free
Glazing	Automotive laminated safety glass
Floor	Chequer-plate aluminium floor — corrosion-free and hard-wearing
Seating	Automotive-grade PU seating, ergonomically profiled
Dash and instrumentation	Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders
Lighting and signalling	LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer
Additional standard equipment	Reversing camera Multimedia display with speakers Two-point seat belts Fire extinguisher Brake booster Power steering USB socket Foam seat cushions fitted as standard All metalwork electrophoretically primed and powder coated Stainless steel stake sides

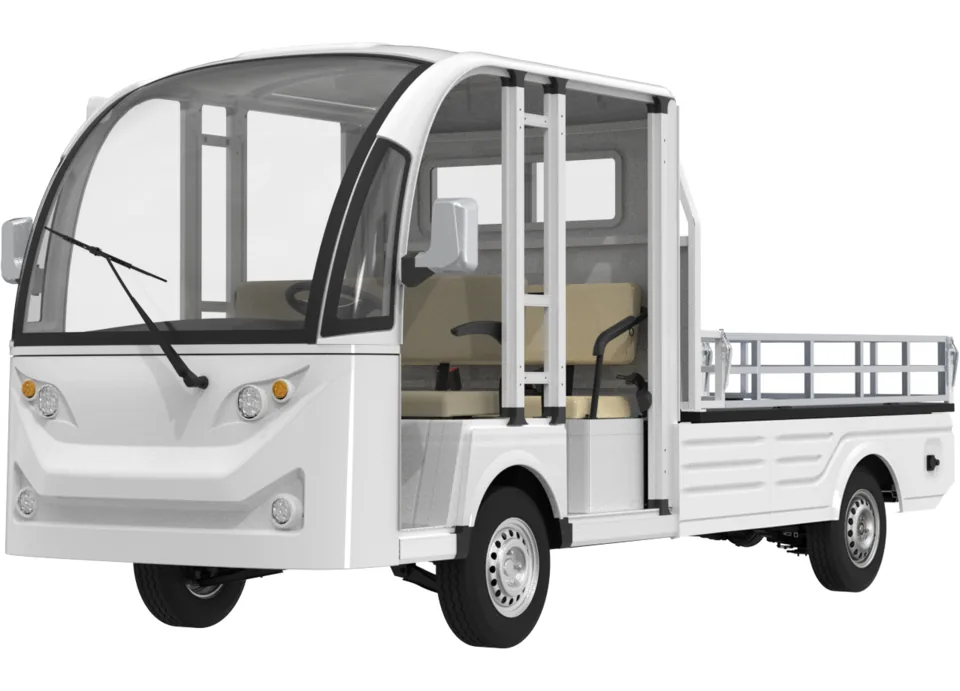

Flat deck, open cab · 5 seats

Hauler HL32 — Flat deck, open cab · 5 seats specification
Overall L x W x H	4920 x 1500 x 2095 mm193.7 x 59.1 x 82.5 in
Wheelbase	2770 mm109.1 in
Seating capacity	5
Kerb weight	1300 kg2866 lb
Gross vehicle weight	2445 kg5390 lb
Track, front / rear	1300 / 1300 mm51.2 / 51.2 in
Ground clearance	140 mm5.5 in
Turning radius, outer	≤ 6.5 m≤ 21.3 ft
Cargo deck	2470 x 1500 x 300 mm (stainless steel stake sides)97.2 x 59.1 x 11.8 in (stainless steel stake sides)
Range	90 km56 mi
Top speed	≤ 30 km/h, adjustable≤ 19 mph, adjustable
Max gradient, laden	≤ 15%
System voltage	72 V
Motor	72 V 7.5 kW three-phase AC induction motor, copper-wound, high torque and low noise
Controller	72 V 450 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping
Battery	Twelve 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries
Charger	On-board intelligent high-frequency charger, 220 V AC input, 72 V DC / 25 A output
Charge time	8 hours
Chassis	High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat
Front axle and suspension	MacPherson strut independent front suspension, coil springs with hydraulic dampers
Rear axle and suspension	Solid rear axle on leaf springs with hydraulic dampers
Brakes	Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance
Steering	Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance
Tyres and wheels	165/70R13C tubeless radial tyres on steel rims
Body	High-strength composite body with an injection-moulded PP front cowl for impact resistance
Canopy	Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant
Roof pillars	Custom aluminium pillars — high strength, corrosion-free
Glazing	Automotive laminated safety glass
Floor	Chequer-plate aluminium floor — corrosion-free and hard-wearing
Seating	Automotive-grade PU seating, ergonomically profiled
Dash and instrumentation	Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders
Lighting and signalling	LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer
Additional standard equipment	Reversing camera Multimedia display with speakers Two-point seat belts Fire extinguisher Brake booster Power steering USB socket Foam seat cushions fitted as standard All metalwork electrophoretically primed and powder coated Stainless steel stake sides

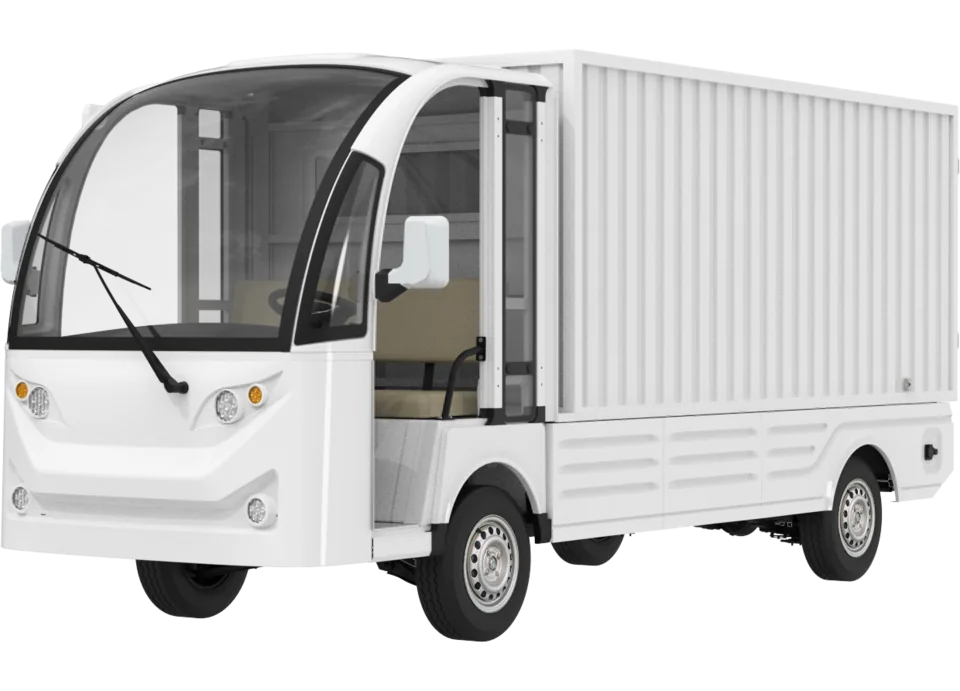

Cargo box, open cab · 2 seats

Hauler HL32 — Cargo box, open cab · 2 seats specification
Overall L x W x H	4950 x 1500 x 2150 mm194.9 x 59.1 x 84.6 in
Wheelbase	2770 mm109.1 in
Seating capacity	2
Kerb weight	1545 kg3406 lb
Gross vehicle weight	2495 kg5501 lb
Track, front / rear	1300 / 1300 mm51.2 / 51.2 in
Ground clearance	140 mm5.5 in
Turning radius, outer	≤ 6.5 m≤ 21.3 ft
Cargo box, internal	3250 x 1500 x 1350 mm (steel box, twin rear doors)128 x 59.1 x 53.1 in (steel box, twin rear doors)
Range	90 km56 mi
Top speed	≤ 30 km/h, adjustable≤ 19 mph, adjustable
Max gradient, laden	≤ 15%
System voltage	72 V
Motor	72 V 7.5 kW three-phase AC induction motor, copper-wound, high torque and low noise
Controller	72 V 450 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping
Battery	Twelve 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries
Charger	On-board intelligent high-frequency charger, 220 V AC input, 72 V DC / 25 A output
Charge time	8 hours
Chassis	High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat
Front axle and suspension	MacPherson strut independent front suspension, coil springs with hydraulic dampers
Rear axle and suspension	Solid rear axle on leaf springs with hydraulic dampers
Brakes	Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance
Steering	Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance
Tyres and wheels	165/70R13C tubeless radial tyres on steel rims
Body	High-strength composite body with an injection-moulded PP front cowl for impact resistance
Canopy	Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant
Roof pillars	Custom aluminium pillars — high strength, corrosion-free
Glazing	Automotive laminated safety glass
Floor	Chequer-plate aluminium floor — corrosion-free and hard-wearing
Seating	Automotive-grade PU seating, ergonomically profiled
Dash and instrumentation	Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders
Lighting and signalling	LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer
Additional standard equipment	Reversing camera Multimedia display with speakers Two-point seat belts Fire extinguisher Brake booster Power steering USB socket Foam seat cushions fitted as standard All metalwork electrophoretically primed and powder coated Steel cargo box

Cargo box, open cab · 5 seats

Hauler HL32 — Cargo box, open cab · 5 seats specification
Overall L x W x H	4950 x 1500 x 2150 mm194.9 x 59.1 x 84.6 in
Wheelbase	2770 mm109.1 in
Seating capacity	5
Kerb weight	1545 kg3406 lb
Gross vehicle weight	2495 kg5501 lb
Track, front / rear	1300 / 1300 mm51.2 / 51.2 in
Ground clearance	140 mm5.5 in
Turning radius, outer	≤ 6.5 m≤ 21.3 ft
Cargo box, internal	2500 x 1500 x 1350 mm (steel box, twin rear doors)98.4 x 59.1 x 53.1 in (steel box, twin rear doors)
Range	90 km56 mi
Top speed	≤ 30 km/h, adjustable≤ 19 mph, adjustable
Max gradient, laden	≤ 15%
System voltage	72 V
Motor	72 V 7.5 kW three-phase AC induction motor, copper-wound, high torque and low noise
Controller	72 V 450 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping
Battery	Twelve 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries
Charger	On-board intelligent high-frequency charger, 220 V AC input, 72 V DC / 25 A output
Charge time	8 hours
Chassis	High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat
Front axle and suspension	MacPherson strut independent front suspension, coil springs with hydraulic dampers
Rear axle and suspension	Solid rear axle on leaf springs with hydraulic dampers
Brakes	Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance
Steering	Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance
Tyres and wheels	165/70R13C tubeless radial tyres on steel rims
Body	High-strength composite body with an injection-moulded PP front cowl for impact resistance
Canopy	Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant
Roof pillars	Custom aluminium pillars — high strength, corrosion-free
Glazing	Automotive laminated safety glass
Floor	Chequer-plate aluminium floor — corrosion-free and hard-wearing
Seating	Automotive-grade PU seating, ergonomically profiled
Dash and instrumentation	Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders
Lighting and signalling	LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer
Additional standard equipment	Reversing camera Multimedia display with speakers Two-point seat belts Fire extinguisher Brake booster Power steering USB socket Foam seat cushions fitted as standard All metalwork electrophoretically primed and powder coated Steel cargo box

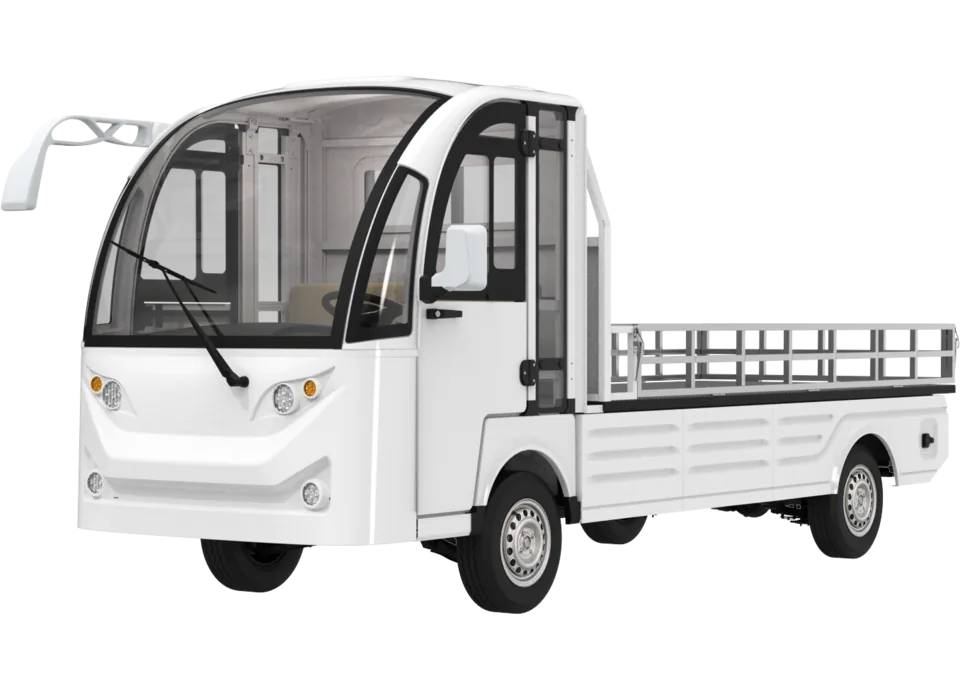

Flat deck, closed cab · 2 seats

Hauler HL32 — Flat deck, closed cab · 2 seats specification
Overall L x W x H	4920 x 1500 x 2095 mm193.7 x 59.1 x 82.5 in
Wheelbase	2770 mm109.1 in
Seating capacity	2
Kerb weight	1300 kg2866 lb
Gross vehicle weight	2470 kg5445 lb
Track, front / rear	1300 / 1300 mm51.2 / 51.2 in
Ground clearance	140 mm5.5 in
Turning radius, outer	≤ 6.5 m≤ 21.3 ft
Cargo deck	3220 x 1500 x 300 mm (stainless steel stake sides)126.8 x 59.1 x 11.8 in (stainless steel stake sides)
Range	90 km56 mi
Top speed	≤ 30 km/h, adjustable≤ 19 mph, adjustable
Max gradient, laden	≤ 15%
System voltage	72 V
Motor	72 V 7.5 kW three-phase AC induction motor, copper-wound, high torque and low noise
Controller	72 V 450 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping
Battery	Twelve 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries
Charger	On-board intelligent high-frequency charger, 220 V AC input, 72 V DC / 25 A output
Charge time	8 hours
Chassis	High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat
Front axle and suspension	MacPherson strut independent front suspension, coil springs with hydraulic dampers
Rear axle and suspension	Solid rear axle on leaf springs with hydraulic dampers
Brakes	Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance
Steering	Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance
Tyres and wheels	165/70R13C tubeless radial tyres on steel rims
Body	High-strength composite front structure with an injection-moulded PP front cowl for impact resistance
Canopy	Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant
Roof pillars	Custom aluminium pillars — high strength, corrosion-free
Doors	High-strength steel door frames with aluminium skins and sliding windows
Glazing	Automotive laminated safety glass
Floor	Chequer-plate aluminium floor — corrosion-free and hard-wearing
Seating	Automotive-grade PU seating, ergonomically profiled
Dash and instrumentation	Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders
Lighting and signalling	LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer
Additional standard equipment	Reversing camera Multimedia display with speakers Two-point seat belts Fire extinguisher Brake booster Power steering USB socket Foam seat cushions fitted as standard All metalwork electrophoretically primed and powder coated Stainless steel stake sides

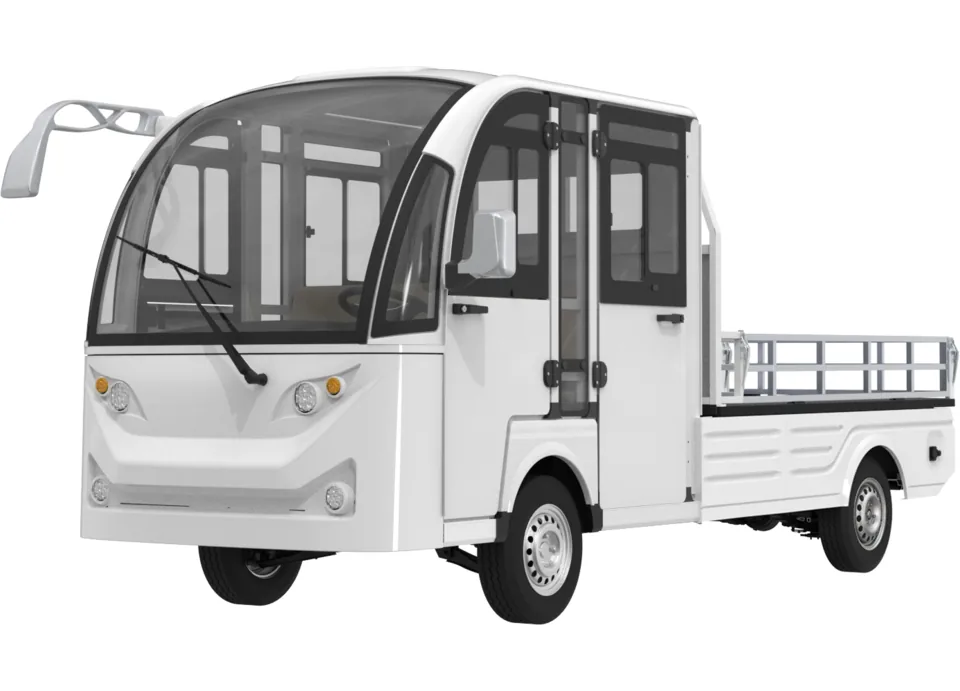

Flat deck, closed cab · 5 seats

Hauler HL32 — Flat deck, closed cab · 5 seats specification
Overall L x W x H	4920 x 1500 x 2095 mm193.7 x 59.1 x 82.5 in
Wheelbase	2770 mm109.1 in
Seating capacity	5
Kerb weight	1300 kg2866 lb
Gross vehicle weight	2470 kg5445 lb
Track, front / rear	1300 / 1300 mm51.2 / 51.2 in
Ground clearance	140 mm5.5 in
Turning radius, outer	≤ 6.5 m≤ 21.3 ft
Cargo deck	2470 x 1500 x 300 mm (stainless steel stake sides)97.2 x 59.1 x 11.8 in (stainless steel stake sides)
Range	90 km56 mi
Top speed	≤ 30 km/h, adjustable≤ 19 mph, adjustable
Max gradient, laden	≤ 15%
System voltage	72 V
Motor	72 V 7.5 kW three-phase AC induction motor, copper-wound, high torque and low noise
Controller	72 V 450 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping
Battery	Twelve 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries
Charger	On-board intelligent high-frequency charger, 220 V AC input, 72 V DC / 25 A output
Charge time	8 hours
Chassis	High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat
Front axle and suspension	MacPherson strut independent front suspension, coil springs with hydraulic dampers
Rear axle and suspension	Solid rear axle on leaf springs with hydraulic dampers
Brakes	Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance
Steering	Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance
Tyres and wheels	165/70R13C tubeless radial tyres on steel rims
Body	High-strength composite front structure with an injection-moulded PP front cowl for impact resistance
Canopy	Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant
Roof pillars	Custom aluminium pillars — high strength, corrosion-free
Doors	High-strength steel door frames with aluminium skins and sliding windows
Glazing	Automotive laminated safety glass
Floor	Chequer-plate aluminium floor — corrosion-free and hard-wearing
Seating	Automotive-grade PU seating, ergonomically profiled
Dash and instrumentation	Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders
Lighting and signalling	LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer
Additional standard equipment	Reversing camera Multimedia display with speakers Two-point seat belts Fire extinguisher Brake booster Power steering USB socket Foam seat cushions fitted as standard All metalwork electrophoretically primed and powder coated Stainless steel stake sides

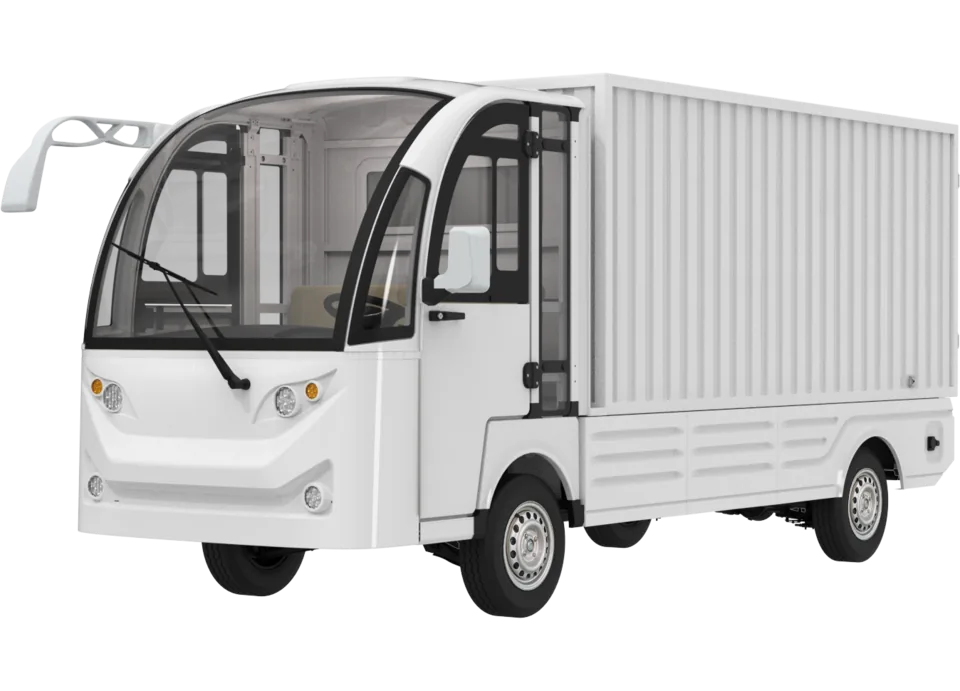

Cargo box, closed cab · 2 seats

Hauler HL32 — Cargo box, closed cab · 2 seats specification
Overall L x W x H	4950 x 1500 x 2150 mm194.9 x 59.1 x 84.6 in
Wheelbase	2770 mm109.1 in
Seating capacity	2
Kerb weight	1560 kg3439 lb
Gross vehicle weight	2530 kg5578 lb
Track, front / rear	1300 / 1300 mm51.2 / 51.2 in
Ground clearance	140 mm5.5 in
Turning radius, outer	≤ 6.5 m≤ 21.3 ft
Cargo box, internal	3250 x 1500 x 1350 mm (steel box, twin rear doors)128 x 59.1 x 53.1 in (steel box, twin rear doors)
Range	90 km56 mi
Top speed	≤ 30 km/h, adjustable≤ 19 mph, adjustable
Max gradient, laden	≤ 15%
System voltage	72 V
Motor	72 V 7.5 kW three-phase AC induction motor, copper-wound, high torque and low noise
Controller	72 V 450 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping
Battery	Twelve 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries
Charger	On-board intelligent high-frequency charger, 220 V AC input, 72 V DC / 25 A output
Charge time	8 hours
Chassis	High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat
Front axle and suspension	MacPherson strut independent front suspension, coil springs with hydraulic dampers
Rear axle and suspension	Solid rear axle on leaf springs with hydraulic dampers
Brakes	Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance
Steering	Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance
Tyres and wheels	165/70R13C tubeless radial tyres on steel rims
Body	High-strength composite front structure with an injection-moulded PP front cowl for impact resistance
Canopy	Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant
Roof pillars	Custom aluminium pillars — high strength, corrosion-free
Doors	High-strength steel door frames with aluminium skins and sliding windows
Glazing	Automotive laminated safety glass
Floor	Chequer-plate aluminium floor — corrosion-free and hard-wearing
Seating	Automotive-grade PU seating, ergonomically profiled
Dash and instrumentation	Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders
Lighting and signalling	LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer
Additional standard equipment	Reversing camera Multimedia display with speakers Two-point seat belts Fire extinguisher Brake booster Power steering USB socket Foam seat cushions fitted as standard All metalwork electrophoretically primed and powder coated Steel cargo box

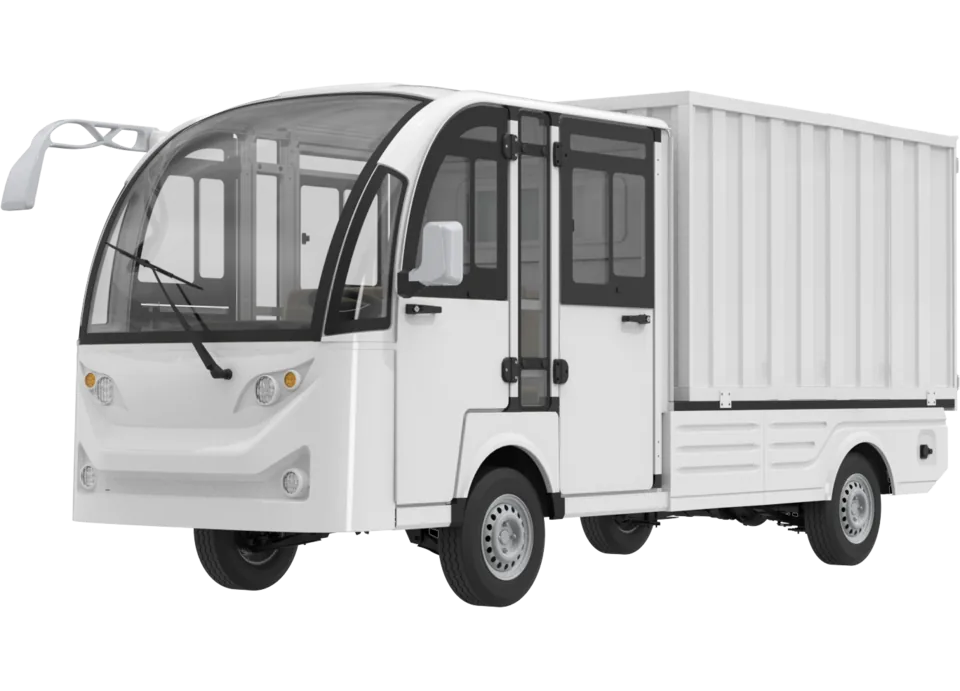

Cargo box, closed cab · 5 seats

Hauler HL32 — Cargo box, closed cab · 5 seats specification
Overall L x W x H	4950 x 1500 x 2150 mm194.9 x 59.1 x 84.6 in
Wheelbase	2770 mm109.1 in
Seating capacity	5
Kerb weight	1560 kg3439 lb
Gross vehicle weight	2530 kg5578 lb
Track, front / rear	1300 / 1300 mm51.2 / 51.2 in
Ground clearance	140 mm5.5 in
Turning radius, outer	≤ 6.5 m≤ 21.3 ft
Cargo box, internal	2500 x 1500 x 1350 mm (steel box, twin rear doors)98.4 x 59.1 x 53.1 in (steel box, twin rear doors)
Range	90 km56 mi
Top speed	≤ 30 km/h, adjustable≤ 19 mph, adjustable
Max gradient, laden	≤ 15%
System voltage	72 V
Motor	72 V 7.5 kW three-phase AC induction motor, copper-wound, high torque and low noise
Controller	72 V 450 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping
Battery	Twelve 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries
Charger	On-board intelligent high-frequency charger, 220 V AC input, 72 V DC / 25 A output
Charge time	8 hours
Chassis	High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat
Front axle and suspension	MacPherson strut independent front suspension, coil springs with hydraulic dampers
Rear axle and suspension	Solid rear axle on leaf springs with hydraulic dampers
Brakes	Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance
Steering	Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance
Tyres and wheels	165/70R13C tubeless radial tyres on steel rims
Body	High-strength composite front structure with an injection-moulded PP front cowl for impact resistance
Canopy	Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant
Roof pillars	Custom aluminium pillars — high strength, corrosion-free
Doors	High-strength steel door frames with aluminium skins and sliding windows
Glazing	Automotive laminated safety glass
Floor	Chequer-plate aluminium floor — corrosion-free and hard-wearing
Seating	Automotive-grade PU seating, ergonomically profiled
Dash and instrumentation	Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders
Lighting and signalling	LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer
Additional standard equipment	Reversing camera Multimedia display with speakers Two-point seat belts Fire extinguisher Brake booster Power steering USB socket Foam seat cushions fitted as standard All metalwork electrophoretically primed and powder coated Steel cargo box
