Hauler HL24
Flatbed or box, single or double cab.
- Seats
- 2
- Range
- 70 km 43 mi
- Top speed
- ≤ 30 km/h ≤ 19 mph · adjustable
- Motor
- 5 kW 48 V AC
About the Hauler
The work truck. Two wheelbases, each available as a single or double cab, with an open half-top or a closed cab, and either a flat deck or a drop-side cargo box.
- Overall4155 x 1500 x 2095 mm163.6 x 59.1 x 82.5 in
- SeriesHaulerUtility & Cargo
- Seating2–5configurable
2025 model year
Full specification
Reproduced in full from the manufacturer's configuration sheet, revision 20250901. Imperial values are converted, not separately measured. First-party specification; not independent validation.
Flat deck, open cab · 2 seats
| Overall L x W x H | 4155 x 1500 x 2095 mm163.6 x 59.1 x 82.5 in |
|---|---|
| Wheelbase | 2020 mm79.5 in |
| Seating capacity | 2 |
| Kerb weight | 1110 kg2447 lb |
| Gross vehicle weight | 2250 kg4960 lb |
| Track, front / rear | 1300 / 1300 mm51.2 / 51.2 in |
| Ground clearance | 140 mm5.5 in |
| Turning radius, outer | ≤ 4.5 m≤ 14.8 ft |
| Cargo deck | 2480 x 1500 x 300 mm (stainless steel stake sides)97.6 x 59.1 x 11.8 in (stainless steel stake sides) |
| Range | 70 km43 mi |
| Top speed | ≤ 30 km/h, adjustable≤ 19 mph, adjustable |
| Max gradient, laden | ≤ 15% |
| System voltage | 48 V |
| Motor | 48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise |
| Controller | 48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping |
| Battery | Eight 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries |
| Charger | On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output |
| Charge time | 8 hours |
| Chassis | High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat |
| Front axle and suspension | MacPherson strut independent front suspension, coil springs with hydraulic dampers |
| Rear axle and suspension | Solid rear axle on leaf springs with hydraulic dampers |
| Brakes | Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance |
| Steering | Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance |
| Tyres and wheels | 165/70R13C tubeless radial tyres on steel rims |
| Body | High-strength composite body with an injection-moulded PP front cowl for impact resistance |
| Canopy | Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant |
| Roof pillars | Custom aluminium pillars — high strength, corrosion-free |
| Glazing | Automotive laminated safety glass |
| Floor | Chequer-plate aluminium floor — corrosion-free and hard-wearing |
| Seating | Automotive-grade PU seating, ergonomically profiled |
| Dash and instrumentation | Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders |
| Lighting and signalling | LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer |
| Additional standard equipment |
|

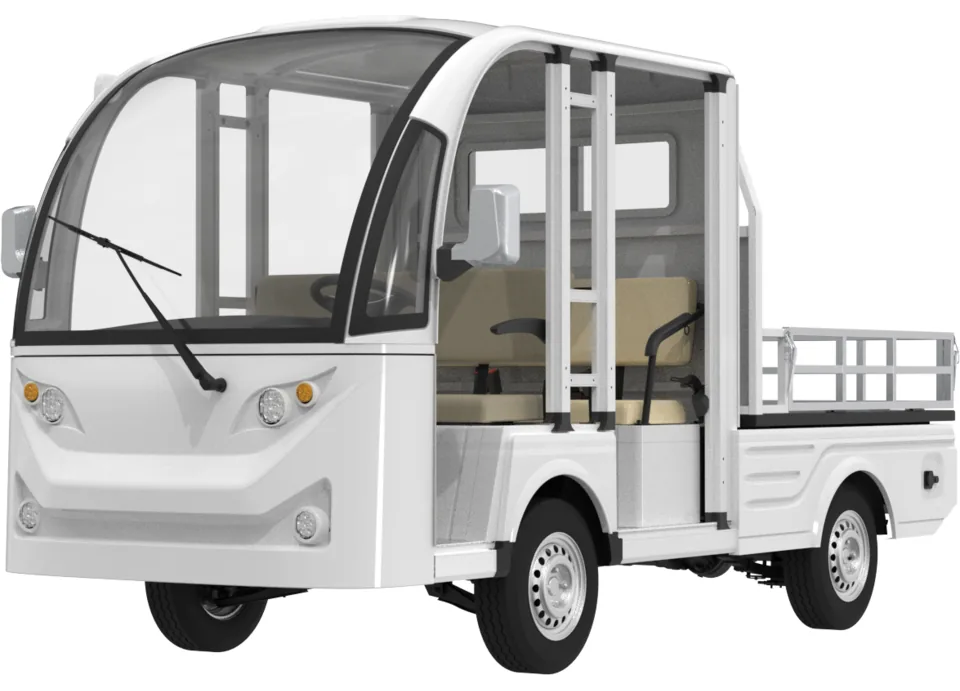

Flat deck, open cab · 5 seats
| Overall L x W x H | 4155 x 1500 x 2095 mm163.6 x 59.1 x 82.5 in |
|---|---|
| Wheelbase | 2020 mm79.5 in |
| Seating capacity | 5 |
| Kerb weight | 1110 kg2447 lb |
| Gross vehicle weight | 2250 kg4960 lb |
| Track, front / rear | 1300 / 1300 mm51.2 / 51.2 in |
| Ground clearance | 140 mm5.5 in |
| Turning radius, outer | ≤ 4.5 m≤ 14.8 ft |
| Cargo deck | 1730 x 1500 x 300 mm (stainless steel stake sides)68.1 x 59.1 x 11.8 in (stainless steel stake sides) |
| Range | 70 km43 mi |
| Top speed | ≤ 30 km/h, adjustable≤ 19 mph, adjustable |
| Max gradient, laden | ≤ 15% |
| System voltage | 48 V |
| Motor | 48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise |
| Controller | 48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping |
| Battery | Eight 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries |
| Charger | On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output |
| Charge time | 8 hours |
| Chassis | High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat |
| Front axle and suspension | MacPherson strut independent front suspension, coil springs with hydraulic dampers |
| Rear axle and suspension | Solid rear axle on leaf springs with hydraulic dampers |
| Brakes | Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance |
| Steering | Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance |
| Tyres and wheels | 165/70R13C tubeless radial tyres on steel rims |
| Body | High-strength composite body with an injection-moulded PP front cowl for impact resistance |
| Canopy | Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant |
| Roof pillars | Custom aluminium pillars — high strength, corrosion-free |
| Glazing | Automotive laminated safety glass |
| Floor | Chequer-plate aluminium floor — corrosion-free and hard-wearing |
| Seating | Automotive-grade PU seating, ergonomically profiled |
| Dash and instrumentation | Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders |
| Lighting and signalling | LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer |
| Additional standard equipment |
|

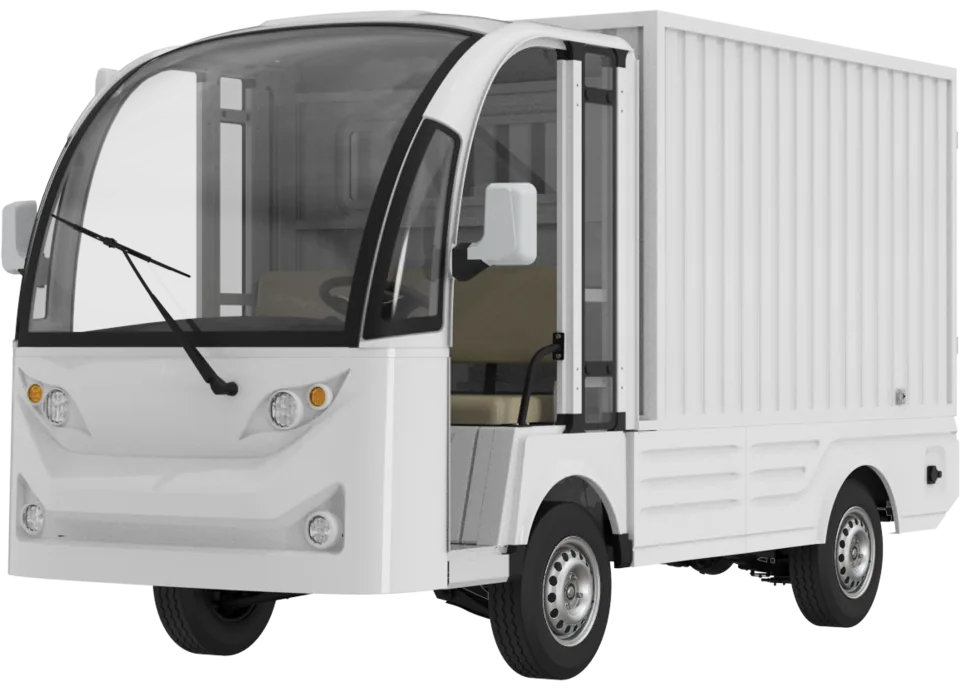

Cargo box, open cab · 2 seats
| Overall L x W x H | 4185 x 1500 x 2150 mm164.8 x 59.1 x 84.6 in |
|---|---|
| Wheelbase | 2020 mm79.5 in |
| Seating capacity | 2 |
| Kerb weight | 1330 kg2932 lb |
| Gross vehicle weight | 2300 kg5071 lb |
| Track, front / rear | 1300 / 1300 mm51.2 / 51.2 in |
| Ground clearance | 140 mm5.5 in |
| Turning radius, outer | ≤ 4.5 m≤ 14.8 ft |
| Cargo box, internal | 2510 x 1500 x 1350 mm (steel box, twin rear doors)98.8 x 59.1 x 53.1 in (steel box, twin rear doors) |
| Range | 70 km43 mi |
| Top speed | ≤ 30 km/h, adjustable≤ 19 mph, adjustable |
| Max gradient, laden | ≤ 15% |
| System voltage | 48 V |
| Motor | 48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise |
| Controller | 48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping |
| Battery | Eight 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries |
| Charger | On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output |
| Charge time | 8 hours |
| Chassis | High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat |
| Front axle and suspension | MacPherson strut independent front suspension, coil springs with hydraulic dampers |
| Rear axle and suspension | Solid rear axle on leaf springs with hydraulic dampers |
| Brakes | Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance |
| Steering | Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance |
| Tyres and wheels | 165/70R13C tubeless radial tyres on steel rims |
| Body | High-strength composite body with an injection-moulded PP front cowl for impact resistance |
| Canopy | Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant |
| Roof pillars | Custom aluminium pillars — high strength, corrosion-free |
| Glazing | Automotive laminated safety glass |
| Floor | Chequer-plate aluminium floor — corrosion-free and hard-wearing |
| Seating | Automotive-grade PU seating, ergonomically profiled |
| Dash and instrumentation | Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders |
| Lighting and signalling | LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer |
| Additional standard equipment |
|

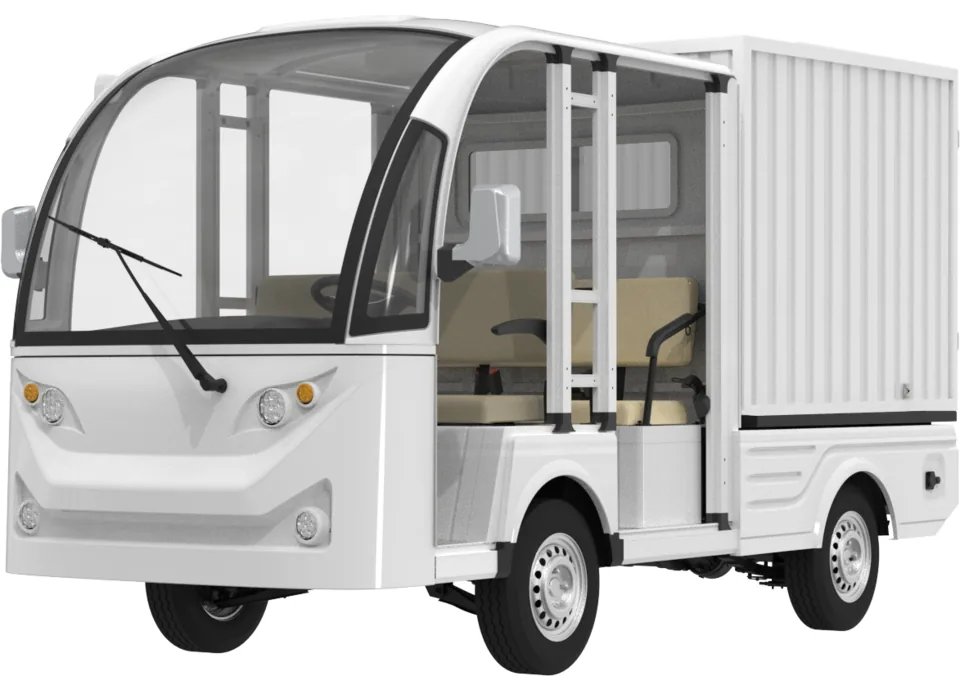

Cargo box, open cab · 5 seats
| Overall L x W x H | 4185 x 1500 x 2150 mm164.8 x 59.1 x 84.6 in |
|---|---|
| Wheelbase | 2020 mm79.5 in |
| Seating capacity | 5 |
| Kerb weight | 1330 kg2932 lb |
| Gross vehicle weight | 2300 kg5071 lb |
| Track, front / rear | 1300 / 1300 mm51.2 / 51.2 in |
| Ground clearance | 140 mm5.5 in |
| Turning radius, outer | ≤ 4.5 m≤ 14.8 ft |
| Cargo box, internal | 1760 x 1500 x 1350 mm (steel box, twin rear doors)69.3 x 59.1 x 53.1 in (steel box, twin rear doors) |
| Range | 70 km43 mi |
| Top speed | ≤ 30 km/h, adjustable≤ 19 mph, adjustable |
| Max gradient, laden | ≤ 15% |
| System voltage | 48 V |
| Motor | 48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise |
| Controller | 48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping |
| Battery | Eight 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries |
| Charger | On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output |
| Charge time | 8 hours |
| Chassis | High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat |
| Front axle and suspension | MacPherson strut independent front suspension, coil springs with hydraulic dampers |
| Rear axle and suspension | Solid rear axle on leaf springs with hydraulic dampers |
| Brakes | Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance |
| Steering | Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance |
| Tyres and wheels | 165/70R13C tubeless radial tyres on steel rims |
| Body | High-strength composite body with an injection-moulded PP front cowl for impact resistance |
| Canopy | Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant |
| Roof pillars | Custom aluminium pillars — high strength, corrosion-free |
| Glazing | Automotive laminated safety glass |
| Floor | Chequer-plate aluminium floor — corrosion-free and hard-wearing |
| Seating | Automotive-grade PU seating, ergonomically profiled |
| Dash and instrumentation | Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders |
| Lighting and signalling | LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer |
| Additional standard equipment |
|

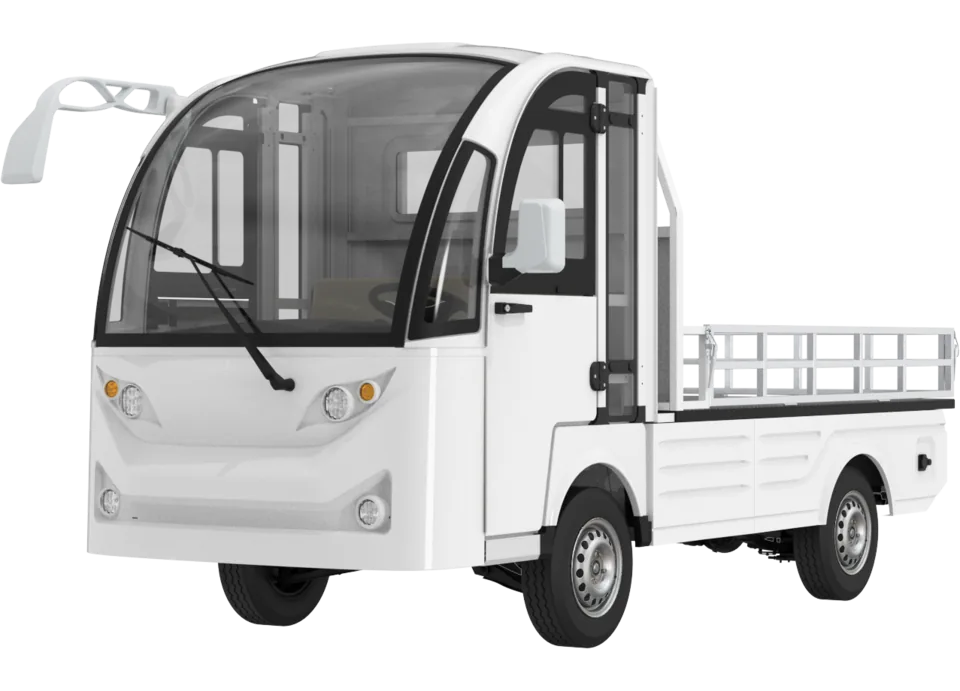

Flat deck, closed cab · 2 seats
| Overall L x W x H | 4155 x 1500 x 2095 mm163.6 x 59.1 x 82.5 in |
|---|---|
| Wheelbase | 2020 mm79.5 in |
| Seating capacity | 2 |
| Kerb weight | 1120 kg2469 lb |
| Gross vehicle weight | 2290 kg5049 lb |
| Track, front / rear | 1300 / 1300 mm51.2 / 51.2 in |
| Ground clearance | 140 mm5.5 in |
| Turning radius, outer | ≤ 4.5 m≤ 14.8 ft |
| Cargo deck | 2480 x 1500 x 300 mm (stainless steel stake sides)97.6 x 59.1 x 11.8 in (stainless steel stake sides) |
| Range | 70 km43 mi |
| Top speed | ≤ 30 km/h, adjustable≤ 19 mph, adjustable |
| Max gradient, laden | ≤ 15% |
| System voltage | 48 V |
| Motor | 48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise |
| Controller | 48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping |
| Battery | Eight 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries |
| Charger | On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output |
| Charge time | 8 hours |
| Chassis | High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat |
| Front axle and suspension | MacPherson strut independent front suspension, coil springs with hydraulic dampers |
| Rear axle and suspension | Solid rear axle on leaf springs with hydraulic dampers |
| Brakes | Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance |
| Steering | Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance |
| Tyres and wheels | 165/70R13C tubeless radial tyres on steel rims |
| Body | High-strength composite front structure with an injection-moulded PP front cowl for impact resistance |
| Canopy | Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant |
| Roof pillars | Custom aluminium pillars — high strength, corrosion-free |
| Doors | High-strength steel door frames with aluminium skins and sliding windows |
| Glazing | Automotive laminated safety glass |
| Floor | Chequer-plate aluminium floor — corrosion-free and hard-wearing |
| Seating | Automotive-grade PU seating, ergonomically profiled |
| Dash and instrumentation | Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders |
| Lighting and signalling | LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer |
| Additional standard equipment |
|
Flat deck, closed cab · 5 seats
| Overall L x W x H | 4155 x 1500 x 2095 mm163.6 x 59.1 x 82.5 in |
|---|---|
| Wheelbase | 2020 mm79.5 in |
| Seating capacity | 5 |
| Kerb weight | 1120 kg2469 lb |
| Gross vehicle weight | 2290 kg5049 lb |
| Track, front / rear | 1300 / 1300 mm51.2 / 51.2 in |
| Ground clearance | 140 mm5.5 in |
| Turning radius, outer | ≤ 4.5 m≤ 14.8 ft |
| Cargo box, internal | 1730 x 1500 x 300 mm (stainless steel stake sides)68.1 x 59.1 x 11.8 in (stainless steel stake sides) |
| Range | 70 km43 mi |
| Top speed | ≤ 30 km/h, adjustable≤ 19 mph, adjustable |
| Max gradient, laden | ≤ 15% |
| System voltage | 48 V |
| Motor | 48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise |
| Controller | 48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping |
| Battery | Eight 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries |
| Charger | On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output |
| Charge time | 8 hours |
| Chassis | High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat |
| Front axle and suspension | MacPherson strut independent front suspension, coil springs with hydraulic dampers |
| Rear axle and suspension | Solid rear axle on leaf springs with hydraulic dampers |
| Brakes | Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance |
| Steering | Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance |
| Tyres and wheels | 165/70R13C tubeless radial tyres on steel rims |
| Body | High-strength composite front structure with an injection-moulded PP front cowl for impact resistance |
| Canopy | Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant |
| Roof pillars | Custom aluminium pillars — high strength, corrosion-free |
| Doors | High-strength steel door frames with aluminium skins and sliding windows |
| Glazing | Automotive laminated safety glass |
| Floor | Chequer-plate aluminium floor — corrosion-free and hard-wearing |
| Seating | Automotive-grade PU seating, ergonomically profiled |
| Dash and instrumentation | Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders |
| Lighting and signalling | LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer |
| Additional standard equipment |
|

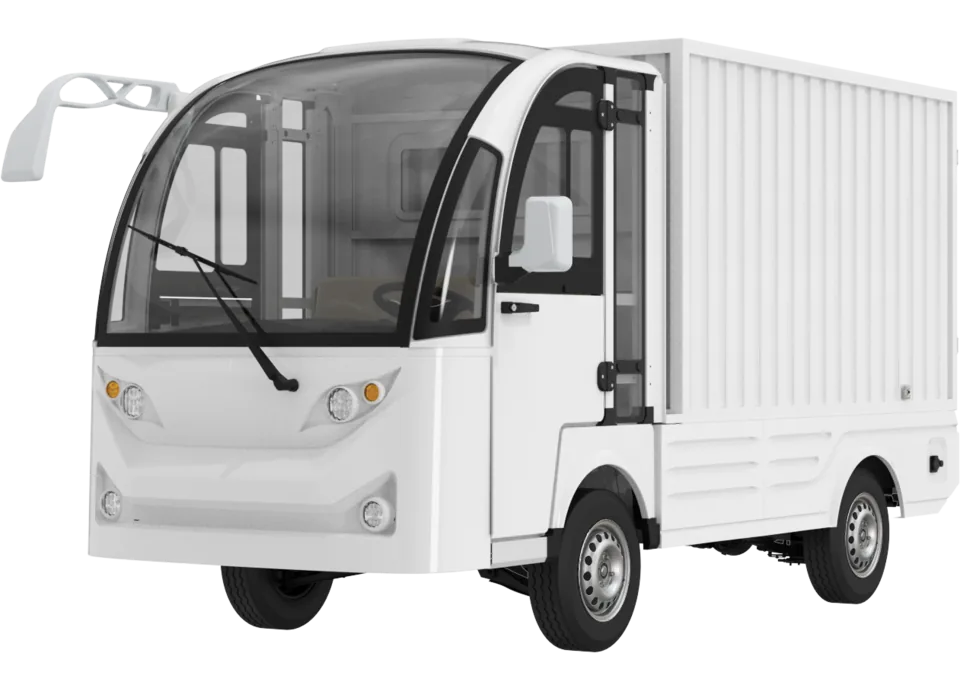

Cargo box, closed cab · 2 seats
| Overall L x W x H | 4185 x 1500 x 2150 mm164.8 x 59.1 x 84.6 in |
|---|---|
| Wheelbase | 2020 mm79.5 in |
| Seating capacity | 2 |
| Kerb weight | 1370 kg3020 lb |
| Gross vehicle weight | 2340 kg5159 lb |
| Track, front / rear | 1300 / 1300 mm51.2 / 51.2 in |
| Ground clearance | 140 mm5.5 in |
| Turning radius, outer | ≤ 4.5 m≤ 14.8 ft |
| Cargo box, internal | 2510 x 1500 x 1350 mm (steel box, twin rear doors)98.8 x 59.1 x 53.1 in (steel box, twin rear doors) |
| Range | 70 km43 mi |
| Top speed | ≤ 30 km/h, adjustable≤ 19 mph, adjustable |
| Max gradient, laden | ≤ 15% |
| System voltage | 48 V |
| Motor | 48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise |
| Controller | 48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping |
| Battery | Eight 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries |
| Charger | On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output |
| Charge time | 8 hours |
| Chassis | High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat |
| Front axle and suspension | MacPherson strut independent front suspension, coil springs with hydraulic dampers |
| Rear axle and suspension | Solid rear axle on leaf springs with hydraulic dampers |
| Brakes | Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance |
| Steering | Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance |
| Tyres and wheels | 165/70R13C tubeless radial tyres on steel rims |
| Body | High-strength composite front structure with an injection-moulded PP front cowl for impact resistance |
| Canopy | Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant |
| Roof pillars | Custom aluminium pillars — high strength, corrosion-free |
| Doors | High-strength steel door frames with aluminium skins and sliding windows |
| Glazing | Automotive laminated safety glass |
| Floor | Chequer-plate aluminium floor — corrosion-free and hard-wearing |
| Seating | Automotive-grade PU seating, ergonomically profiled |
| Dash and instrumentation | Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders |
| Lighting and signalling | LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer |
| Additional standard equipment |
|

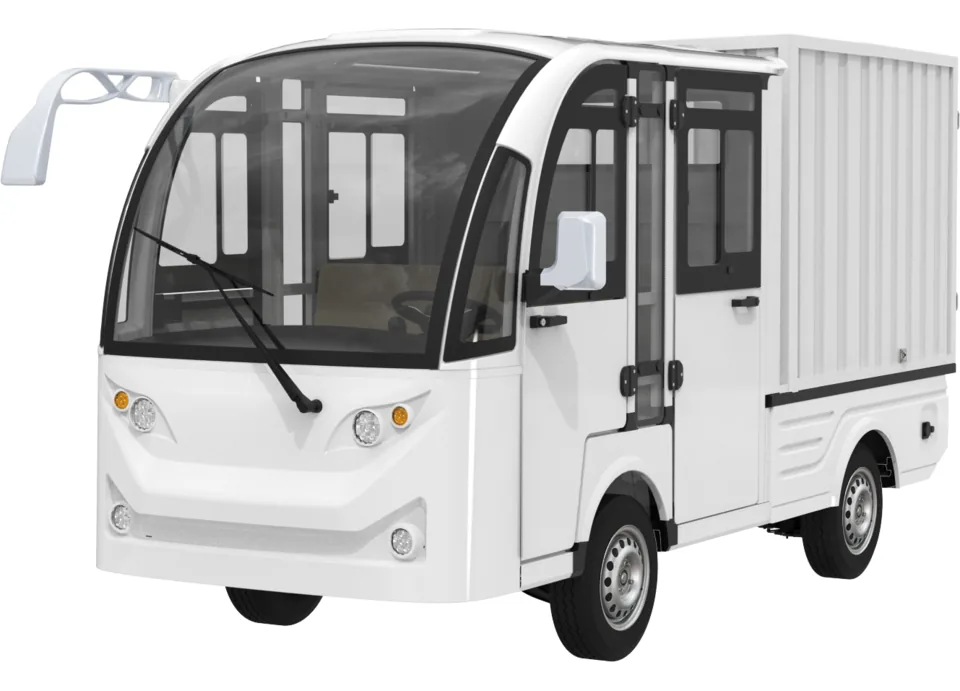

Cargo box, closed cab · 5 seats
| Overall L x W x H | 4185 x 1500 x 2150 mm164.8 x 59.1 x 84.6 in |
|---|---|
| Wheelbase | 2020 mm79.5 in |
| Seating capacity | 5 |
| Kerb weight | 1370 kg3020 lb |
| Gross vehicle weight | 2340 kg5159 lb |
| Track, front / rear | 1300 / 1300 mm51.2 / 51.2 in |
| Ground clearance | 140 mm5.5 in |
| Turning radius, outer | ≤ 4.5 m≤ 14.8 ft |
| Cargo box, internal | 1760 x 1500 x 1350 mm (steel box, twin rear doors)69.3 x 59.1 x 53.1 in (steel box, twin rear doors) |
| Range | 70 km43 mi |
| Top speed | ≤ 30 km/h, adjustable≤ 19 mph, adjustable |
| Max gradient, laden | ≤ 15% |
| System voltage | 48 V |
| Motor | 48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise |
| Controller | 48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping |
| Battery | Eight 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries |
| Charger | On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output |
| Charge time | 8 hours |
| Chassis | High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat |
| Front axle and suspension | MacPherson strut independent front suspension, coil springs with hydraulic dampers |
| Rear axle and suspension | Solid rear axle on leaf springs with hydraulic dampers |
| Brakes | Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance |
| Steering | Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance |
| Tyres and wheels | 165/70R13C tubeless radial tyres on steel rims |
| Body | High-strength composite front structure with an injection-moulded PP front cowl for impact resistance |
| Canopy | Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant |
| Roof pillars | Custom aluminium pillars — high strength, corrosion-free |
| Doors | High-strength steel door frames with aluminium skins and sliding windows |
| Glazing | Automotive laminated safety glass |
| Floor | Chequer-plate aluminium floor — corrosion-free and hard-wearing |
| Seating | Automotive-grade PU seating, ergonomically profiled |
| Dash and instrumentation | Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders |
| Lighting and signalling | LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer |
| Additional standard equipment |
|
Get a quote
Pricing for the Hauler HL24
Tell us the quantity, the seating configuration and the destination port. You get a container loading plan and a landed cost.
- Container loading plan for the models you name
- FOB and landed cost to your port
- Lead time against a frozen specification
- Parts package sized to the fleet
Prefer email? [email protected]
