Electric Shuttle Bus

Transit Max TX23

23-seat electric passenger transport, with open or enclosed body options. Plan the vehicle around your route, passenger load and charging schedule.

Explore customization services

Seats
23
Range
90 km 56 mi
Top speed
≤ 30 km/h ≤ 19 mph · adjustable
Motor
20 kW 96 V AC

Choose your configuration

Configuration

Ask for a loading plan, production timing and service parts in the written quote.

Transit Max TX23, Open body · 23 seats

Keep people moving.

Transit Max TX23 at a glance

The Transit Max TX23 is a 23 seat electric shuttle bus from the Transit Max range for resort, campus, airport and event transfers.

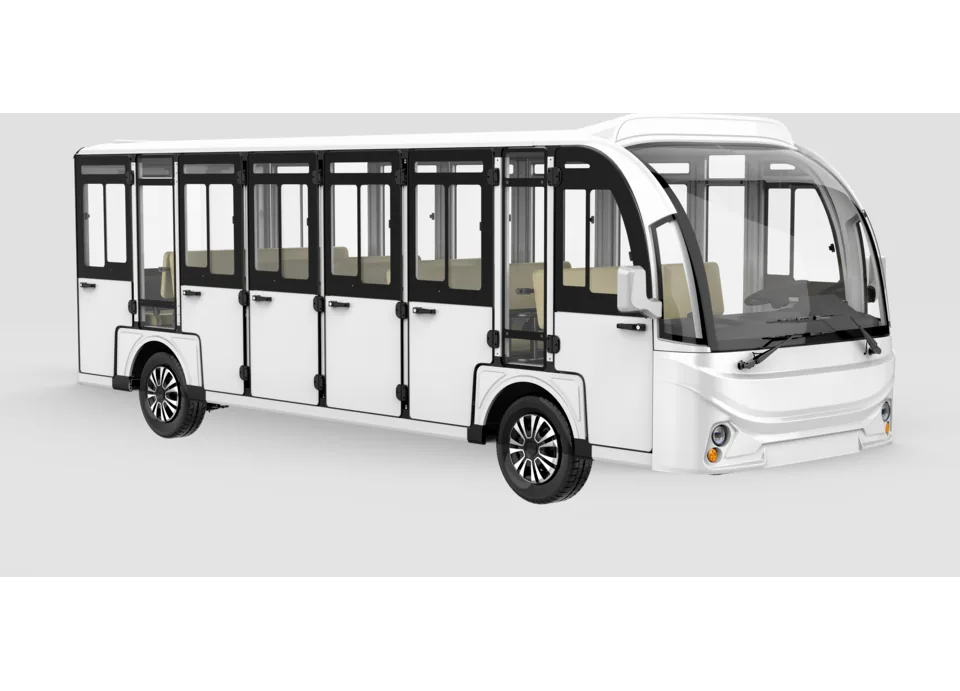

Its published 2025 sheet lists a 90 km (56 mile) base range, a top speed of up to 30 km/h (19 mph), a 96 V system with a 20 kW motor and an 8-hour charge time. Power comes from deep-cycle, maintenance-free lead-acid batteries. Both an open-sided body and an enclosed body are published for this model.

The high-capacity bus. A 96 V / 20 kW permanent-magnet driveline moves up to 27 passengers, for airport aprons, industrial campuses and large resorts running fixed routes.

Dealers and fleet buyers order it wholesale by container, with configuration, colour and branding confirmed in the written quotation.

  • Overall6220 x 1850 x 2270 mm244.9 x 72.8 x 89.4 in
  • SeriesTransit MaxShuttles
  • Seating23configurable

2025 model year

Full specification

Reproduced in full from the manufacturer's configuration sheet, revision 20250901. Imperial values are converted, not separately measured. First-party specification; not independent validation.

Open body · 23 seats

Transit Max TX23 — Open body · 23 seats specification
Overall L x W x H 6220 x 1850 x 2270 mm244.9 x 72.8 x 89.4 in
Wheelbase 3700 mm145.7 in
Seating capacity 23
Kerb weight 1900 kg4189 lb
Gross vehicle weight 3855 kg8499 lb
Track, front / rear 1540 / 1540 mm60.6 / 60.6 in
Ground clearance 150 mm5.9 in
Turning radius, outer ≤ 7.5 m≤ 24.6 ft
Luggage rack 1700 x 400 x 250 mm66.9 x 15.7 x 9.8 in
Range 90 km56 mi
Top speed ≤ 30 km/h, adjustable≤ 19 mph, adjustable
Max gradient, laden ≤ 15%
System voltage 96 V
Motor 96 V 20 kW permanent-magnet synchronous motor, IP67 rated, high torque and low noise
Controller 96 V 660 A permanent-magnet synchronous controller, IP67 rated, with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping
Battery Sixteen 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries (96 V)
Charger On-board intelligent high-frequency charger, 220 V AC input, 96 V DC / 25 A output
Charge time 8 hours
Chassis High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat
Front axle and suspension MacPherson strut independent front suspension, coil springs with hydraulic dampers
Rear axle and suspension Solid rear axle on leaf springs with hydraulic dampers
Brakes Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance
Steering Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance and active return-to-centre
Tyres and wheels 195/70R15 tubeless radial tyres on steel rims with wheel covers
Body High-strength composite front structure for impact resistance
Canopy Reinforced composite skin on an aluminium frame with a pressed-steel header — light, UV-stable and fade-resistant
Roof pillars Custom aluminium front and rear pillars — high strength, corrosion-free
Glazing Automotive laminated safety glass
Floor Chequer-plate aluminium floor — corrosion-free and hard-wearing
Seating Automotive-grade PU seating, ergonomically profiled
Dash and instrumentation Moulded composite dash with combination switchgear, key switch and emergency cut-off, analogue gauges for voltage, state of charge, speed and odometer, plus an LCD multimedia cluster with playback, Bluetooth and fault display — USB/Type-C, storage cubby, cup holders and a reversing camera
Lighting and signalling LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer
Wipers Twin pantograph wipers with washer
Additional standard equipment
  • Two-point seat belts
  • Safety chains
  • Audio system
  • Fire extinguisher
  • Brake booster
  • Power steering
  • USB socket
  • Centre rear-view mirror
Electric vehicle chassis on an assembly line

Plan beyond delivery

A vehicle is part of a bigger plan.

Start with the configuration. Then plan the order, the charging setup and the service parts that keep your fleet supported.

  1. 01

    Define your specification

    Confirm seating, body options and requirements for your market.

  2. 02

    Plan the order

    Share your quantity and destination for loading and pricing.

  3. 03

    Match the parts

    Build a service package around your model and revision.

Build my fleet quote ↗

Questions about the Transit Max TX23

How many seats does the model Transit Max TX23 have?

The Transit Max TX23 seats 23.

How fast does the model Transit Max TX23 go?

Up to 30 km/h (19 mph) on the published sheet, and the top speed can be limited in the controller for your site.

What is the range of the model Transit Max TX23?

The published base range is 90 km (56 miles) per charge, with an 8-hour charge time. Real range depends on load, gradients and driving style.

How much does the model Transit Max TX23 cost?

The Transit Max TX23 is sold wholesale by quotation. The price depends on the configuration, battery, options, quantity and destination; send your order details for a written quote.

Also consider

Nearby in the range

These models share this vehicle category and are ordered by seating proximity. Compare this model's 23 base seats and 90 km published base range with each alternative.

Get a quote

Pricing for the Transit Max TX23

Tell us the quantity, seating configuration and destination port. Request a loading plan and available freight costs in the written quote.

  • Request a loading plan for your model mix
  • Ask for available FOB pricing and freight costs
  • Confirm lead time after agreeing the specification
  • Discuss service parts for each selected configuration
