Name: Heritage R HR40
SKU: HR40
Availability: InStock

About the Heritage R

The classic cart. A 1,185 mm body — the narrowest in the range — with tan bench seating and a conventional canopy. The lowest-cost way to put a fleet on a course.

Overall3170 x 1185 x 1720 mm124.8 x 46.7 x 67.7 in
SeriesHeritage RGolf Carts
Seating4–6configurable

2025 model year

Full specification

Reproduced in full from the manufacturer's configuration sheet, revision 20250901. Imperial values are converted, not separately measured. First-party specification; not independent validation.

4 seats

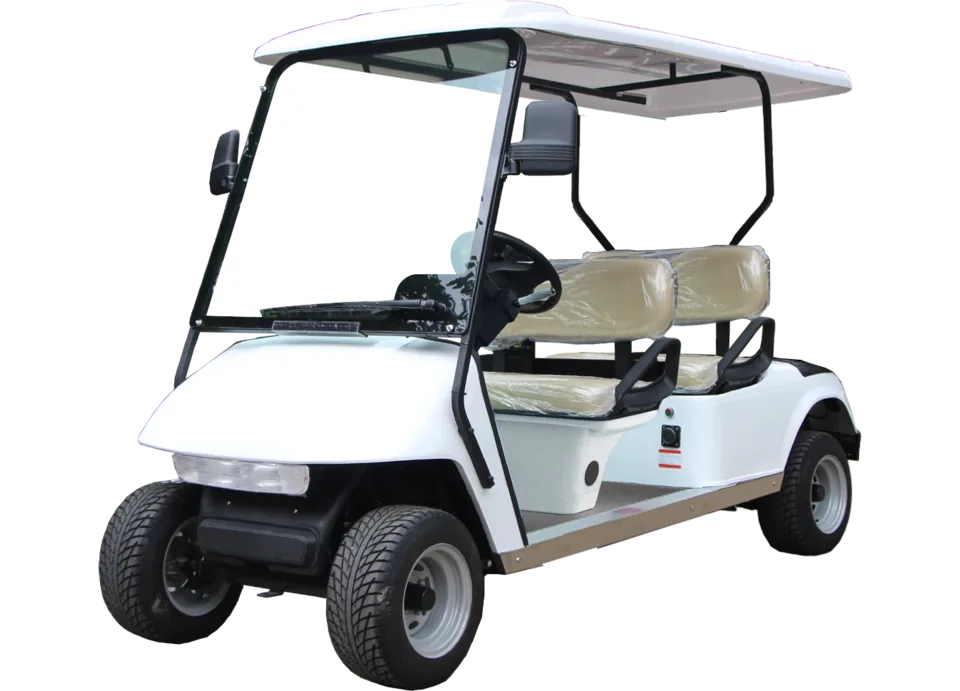

Heritage R HR40 — 4 seats specification
Overall L x W x H	3170 x 1185 x 1720 mm124.8 x 46.7 x 67.7 in
Wheelbase	2480 mm97.6 in
Seating capacity	4
Kerb weight	≤ 495 kg (with batteries)≤ 1091 lb (with batteries)
Gross vehicle weight	835 kg1841 lb
Track, front / rear	850 / 970 mm33.5 / 38.2 in
Ground clearance	110 mm4.3 in
Turning radius, outer	≤ 4 m≤ 13.1 ft
Range	80 km50 mi
Top speed	≤ 25 km/h, adjustable≤ 16 mph, adjustable
Max gradient, laden	≤ 15%
System voltage	48 V
Motor	48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise
Controller	48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping
Battery	Six 8 V 150 Ah deep-cycle maintenance-free lead-acid batteries
Charger	On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output
Charge time	8 hours
Chassis	High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat
Front axle and suspension	Multi-leaf springs with hydraulic dampers
Rear axle and suspension	Multi-leaf springs with hydraulic dampers
Brakes	Mechanical drum brakes with self-releasing park function and automatic slack adjustment
Steering	Single-stage rack-and-pinion steering with drag link
Tyres and wheels	205/50-10 highway tyres, 6-ply rated, P820 tread on steel rims
Body	High-strength composite body with an injection-moulded PP front cowl for impact resistance
Canopy	High-strength vacuum-formed ABS, white
Glazing	Flat acrylic windscreen
Floor	Textured rubber floor
Seating	High-density foam cushions in PVC leatherette
Steering wheel	Injection-moulded steering wheel with scorecard holder (R40)
Dash and instrumentation	Key switch, direction selector, ball and tee holders, cup holders and a round TFT display showing voltage, state of charge, speed and odometer
Lighting and signalling	Combination headlamps, indicators, combination tail lamps, horn and reversing buzzer
Front bumper	Injection-moulded mudguard
Additional standard equipment	Side mirrors

6 seats

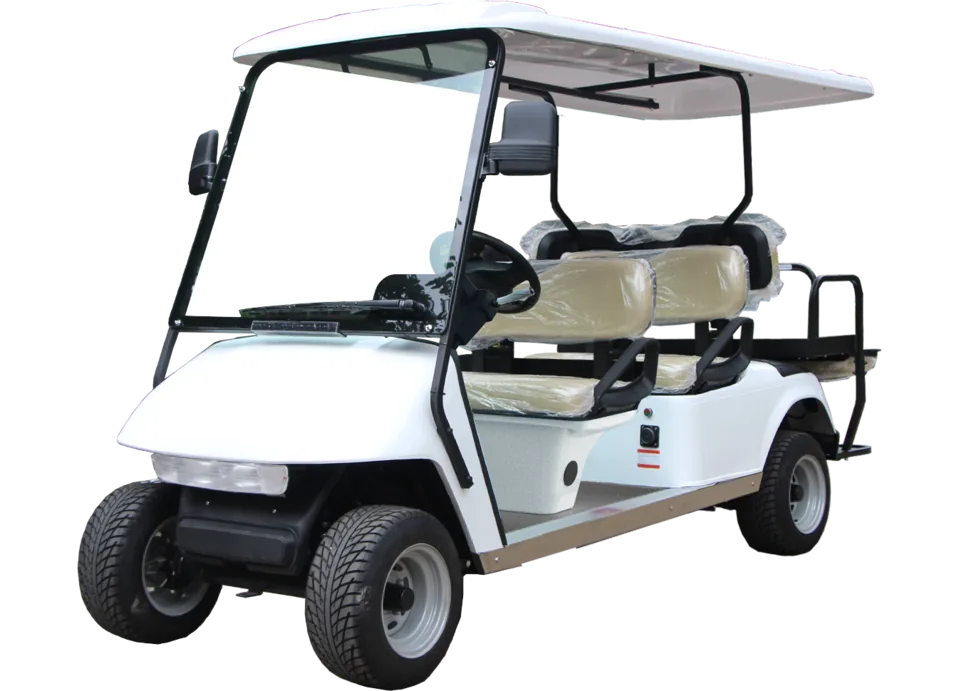

Heritage R HR40 — 6 seats specification
Overall L x W x H	3500 x 1185 x 1860 mm137.8 x 46.7 x 73.2 in
Wheelbase	2480 mm97.6 in
Seating capacity	6
Kerb weight	≤ 528 kg (with batteries)≤ 1164 lb (with batteries)
Gross vehicle weight	1038 kg2288 lb
Track, front / rear	850 / 970 mm33.5 / 38.2 in
Ground clearance	110 mm4.3 in
Turning radius, outer	≤ 4 m≤ 13.1 ft
Range	70 km43 mi
Top speed	≤ 25 km/h, adjustable≤ 16 mph, adjustable
Max gradient, laden	≤ 15%
System voltage	48 V
Motor	48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise
Controller	48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping
Battery	Six 8 V 150 Ah deep-cycle maintenance-free lead-acid batteries
Charger	On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output
Charge time	8 hours
Chassis	High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat
Front axle and suspension	Multi-leaf springs with hydraulic dampers
Rear axle and suspension	Multi-leaf springs with hydraulic dampers
Brakes	Mechanical drum brakes with self-releasing park function and automatic slack adjustment
Steering	Single-stage rack-and-pinion steering with drag link
Tyres and wheels	205/50-10 highway tyres, 6-ply rated, P820 tread on steel rims
Body	High-strength composite body with an injection-moulded PP front cowl for impact resistance
Canopy	High-strength vacuum-formed ABS, white
Glazing	Flat acrylic windscreen
Floor	Textured rubber floor
Seating	High-density foam cushions in PVC leatherette
Steering wheel	Injection-moulded steering wheel with scorecard holder (R40)
Dash and instrumentation	Key switch, direction selector, ball and tee holders, cup holders and a round TFT display showing voltage, state of charge, speed and odometer
Lighting and signalling	Combination headlamps, indicators, combination tail lamps, horn and reversing buzzer
Front bumper	Injection-moulded mudguard
Additional standard equipment	Side mirrors
