Heritage D
Heritage D HD40
Classic silhouette on the wider 1,215 mm body.
- Seats
- 4
- Range
- 80 km 50 mi
- Top speed
- ≤ 25 km/h ≤ 16 mph · adjustable
- Motor
- 5 kW 48 V AC
About the Heritage D
Heritage styling on a 1,215 mm body for a wider seat and more hip room per bench, while keeping the traditional profile and the low purchase price.
- Overall3170 x 1215 x 1720 mm124.8 x 47.8 x 67.7 in
- SeriesHeritage DGolf Carts
- Seating4–6configurable
2025 model year
Full specification
Reproduced in full from the manufacturer's configuration sheet, revision 20250901. Imperial values are converted, not separately measured. First-party specification; not independent validation.
4 seats
| Overall L x W x H | 3170 x 1215 x 1720 mm124.8 x 47.8 x 67.7 in |
|---|---|
| Wheelbase | 2480 mm97.6 in |
| Seating capacity | 4 |
| Kerb weight | ≤ 495 kg (with batteries)≤ 1091 lb (with batteries) |
| Gross vehicle weight | 835 kg1841 lb |
| Track, front / rear | 850 / 970 mm33.5 / 38.2 in |
| Ground clearance | 110 mm4.3 in |
| Turning radius, outer | ≤ 4 m≤ 13.1 ft |
| Range | 80 km50 mi |
| Top speed | ≤ 25 km/h, adjustable≤ 16 mph, adjustable |
| Max gradient, laden | ≤ 15% |
| System voltage | 48 V |
| Motor | 48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise |
| Controller | 48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping |
| Battery | Six 8 V 150 Ah deep-cycle maintenance-free lead-acid batteries |
| Charger | On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output |
| Charge time | 8 hours |
| Chassis | High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat |
| Front axle and suspension | Multi-leaf springs with hydraulic dampers |
| Rear axle and suspension | Multi-leaf springs with hydraulic dampers |
| Brakes | Mechanical drum brakes with self-releasing park function and automatic slack adjustment |
| Steering | Single-stage rack-and-pinion steering with drag link |
| Tyres and wheels | 205/50-10 highway tyres, 6-ply rated, P820 tread on steel rims |
| Body | High-strength composite body with an injection-moulded PP front cowl for impact resistance |
| Canopy | High-strength vacuum-formed ABS, white |
| Glazing | Flat acrylic windscreen |
| Floor | Textured rubber floor |
| Seating | High-density foam cushions in PVC leatherette |
| Steering wheel | Injection-moulded steering wheel with scorecard holder (R40) |
| Dash and instrumentation | Key switch, direction selector, ball and tee holders, cup holders and a round TFT display showing voltage, state of charge, speed and odometer |
| Lighting and signalling | Combination headlamps, indicators, combination tail lamps, horn and reversing buzzer |
| Front bumper | Injection-moulded mudguard |
| Additional standard equipment |
|

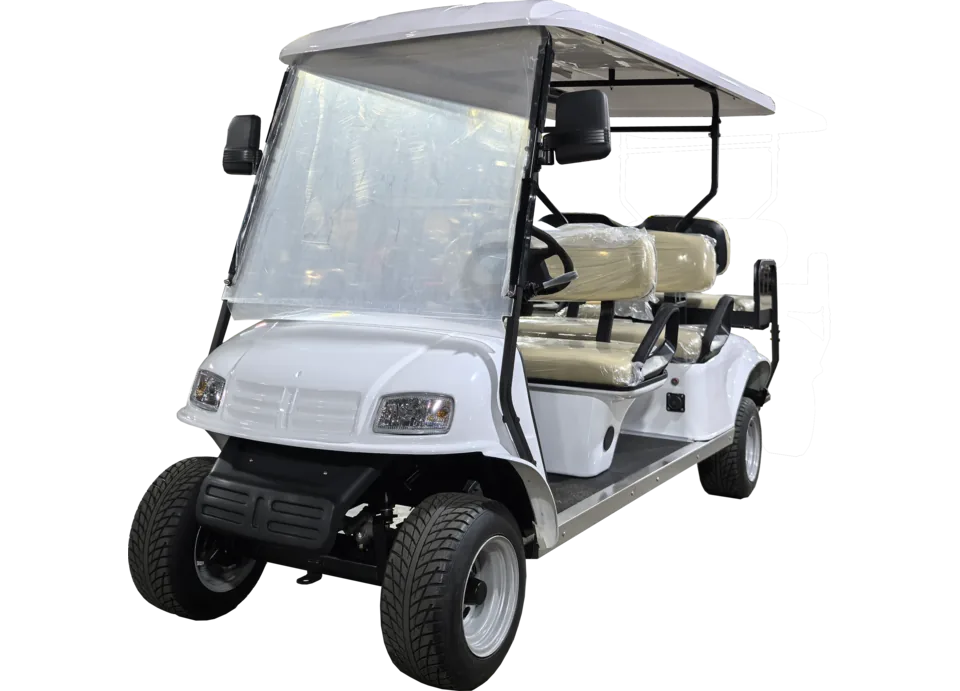

6 seats
| Overall L x W x H | 3500 x 1215 x 1860 mm137.8 x 47.8 x 73.2 in |
|---|---|
| Wheelbase | 2480 mm97.6 in |
| Seating capacity | 6 |
| Kerb weight | ≤ 528 kg (with batteries)≤ 1164 lb (with batteries) |
| Gross vehicle weight | 1038 kg2288 lb |
| Track, front / rear | 850 / 970 mm33.5 / 38.2 in |
| Ground clearance | 110 mm4.3 in |
| Turning radius, outer | ≤ 4 m≤ 13.1 ft |
| Range | 70 km43 mi |
| Top speed | ≤ 25 km/h, adjustable≤ 16 mph, adjustable |
| Max gradient, laden | ≤ 15% |
| System voltage | 48 V |
| Motor | 48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise |
| Controller | 48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping |
| Battery | Six 8 V 150 Ah deep-cycle maintenance-free lead-acid batteries |
| Charger | On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output |
| Charge time | 8 hours |
| Chassis | High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat |
| Front axle and suspension | Multi-leaf springs with hydraulic dampers |
| Rear axle and suspension | Multi-leaf springs with hydraulic dampers |
| Brakes | Mechanical drum brakes with self-releasing park function and automatic slack adjustment |
| Steering | Single-stage rack-and-pinion steering with drag link |
| Tyres and wheels | 205/50-10 highway tyres, 6-ply rated, P820 tread on steel rims |
| Body | High-strength composite body with an injection-moulded PP front cowl for impact resistance |
| Canopy | High-strength vacuum-formed ABS, white |
| Glazing | Flat acrylic windscreen |
| Floor | Textured rubber floor |
| Seating | High-density foam cushions in PVC leatherette |
| Steering wheel | Injection-moulded steering wheel with scorecard holder (R40) |
| Dash and instrumentation | Key switch, direction selector, ball and tee holders, cup holders and a round TFT display showing voltage, state of charge, speed and odometer |
| Lighting and signalling | Combination headlamps, indicators, combination tail lamps, horn and reversing buzzer |
| Front bumper | Injection-moulded mudguard |
| Additional standard equipment |
|
