Electric Golf Cart
Heritage D HD20H
Electric carts for courses, resorts and communities. Match the seating configuration to your daily operation.
- Seats
- 2
- Range
- 70 km 43 mi
- Top speed
- ≤ 32 km/h ≤ 20 mph · adjustable
- Motor
- 5 kW 48 V AC
- Seats
- 4
- Range
- 70 km 43 mi
- Top speed
- ≤ 32 km/h ≤ 20 mph · adjustable
- Motor
- 5 kW 48 V AC
Choose your configuration
Ask for a loading plan, production timing and service parts in the written quote.
Ready for the everyday route.

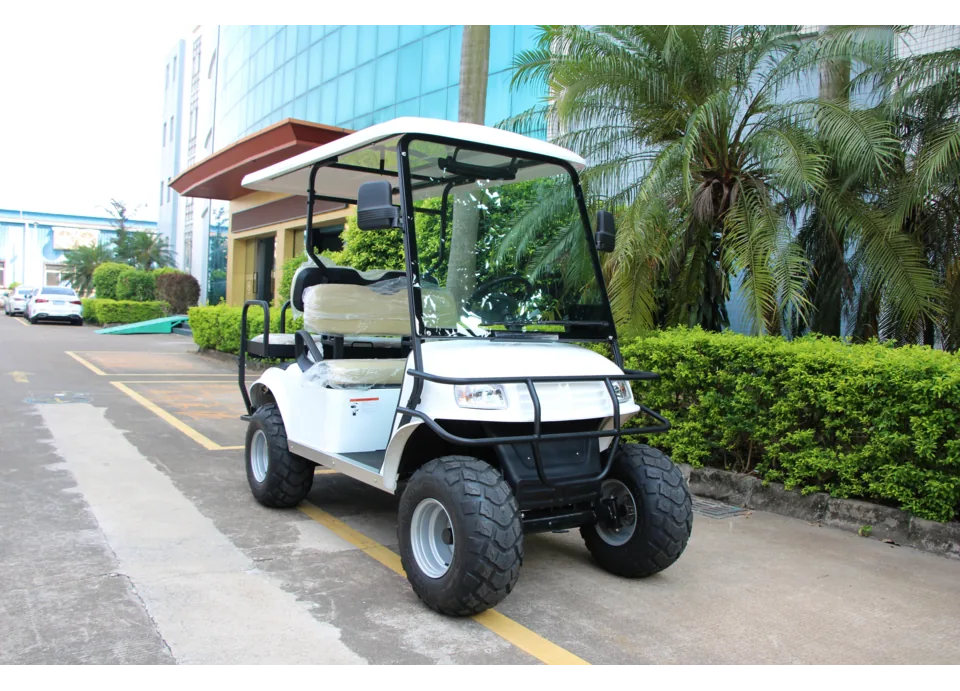

Heritage D HD20H at a glance
The Heritage D HD20H is a 2 to 4 seater electric golf cart from the Heritage D series, built for golf course fleets, resorts and residential communities.
Its published 2025 sheet lists a 70 km (43 mile) base range, a top speed of up to 32 km/h (20 mph), a 48 V system with a 5 kW motor and an 8-hour charge time. Power comes from deep-cycle, maintenance-free lead-acid batteries.
Heritage styling on a 1,215 mm body for a wider seat and more hip room per bench, while keeping the traditional profile and the low purchase price.
Dealers and fleet buyers order it wholesale by container, with configuration, colour and branding confirmed in the written quotation.
- Overall2340 x 1215 x 2050 mm92.1 x 47.8 x 80.7 in
- Overall2690 x 1215 x 2050 mm105.9 x 47.8 x 80.7 in
- SeriesHeritage DGolf Carts
- Seating2–4configurable
2025 model year
Full specification
Reproduced in full from the manufacturer's configuration sheet, revision 20250901. Imperial values are converted, not separately measured. First-party specification; not independent validation.
2 seats
| Overall L x W x H | 2340 x 1215 x 2050 mm92.1 x 47.8 x 80.7 in |
|---|---|
| Wheelbase | 1665 mm65.6 in |
| Seating capacity | 2 |
| Kerb weight | ≤ 503 kg (with batteries)≤ 1109 lb (with batteries) |
| Gross vehicle weight | 673 kg1484 lb |
| Track, front / rear | 850 / 970 mm33.5 / 38.2 in |
| Ground clearance | 180 mm7.1 in |
| Turning radius, outer | ≤ 3 m≤ 9.8 ft |
| Range | 70 km43 mi |
| Top speed | ≤ 32 km/h, adjustable≤ 20 mph, adjustable |
| Max gradient, laden | ≤ 15% |
| System voltage | 48 V |
| Motor | 48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise |
| Controller | 48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping |
| Battery | Six 8 V 150 Ah deep-cycle maintenance-free lead-acid batteries |
| Charger | On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output |
| Charge time | 8 hours |
| Chassis | High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat |
| Front axle and suspension | Multi-leaf springs with hydraulic dampers |
| Rear axle and suspension | Multi-leaf springs with hydraulic dampers |
| Brakes | Mechanical drum brakes with self-releasing park function and automatic slack adjustment |
| Steering | Single-stage rack-and-pinion steering with drag link |
| Tyres and wheels | AT 22 x 10-10 all-terrain tyres, 4-ply, K572A tread on steel rims |
| Body | High-strength composite body with an injection-moulded PP front cowl for impact resistance |
| Canopy | High-strength vacuum-formed ABS, white |
| Glazing | Flat acrylic windscreen |
| Floor | Textured rubber floor |
| Seating | High-density foam cushions in PVC leatherette |
| Steering wheel | Injection-moulded steering wheel with scorecard holder (R40) |
| Dash and instrumentation | Key switch, direction selector, ball and tee holders, cup holders and a round TFT display showing voltage, state of charge, speed and odometer |
| Lighting and signalling | Combination headlamps, indicators, combination tail lamps, horn and reversing buzzer |
| Front bumper | Injection-moulded mudguard |
| Additional standard equipment |
|
4 seats
| Overall L x W x H | 2690 x 1215 x 2050 mm105.9 x 47.8 x 80.7 in |
|---|---|
| Wheelbase | 1665 mm65.6 in |
| Seating capacity | 4 |
| Kerb weight | ≤ 573 kg (with batteries)≤ 1263 lb (with batteries) |
| Gross vehicle weight | 913 kg2013 lb |
| Track, front / rear | 850 / 970 mm33.5 / 38.2 in |
| Ground clearance | 180 mm7.1 in |
| Turning radius, outer | ≤ 3 m≤ 9.8 ft |
| Range | 70 km43 mi |
| Top speed | ≤ 32 km/h, adjustable≤ 20 mph, adjustable |
| Max gradient, laden | ≤ 15% |
| System voltage | 48 V |
| Motor | 48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise |
| Controller | 48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping |
| Battery | Six 8 V 150 Ah deep-cycle maintenance-free lead-acid batteries |
| Charger | On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output |
| Charge time | 8 hours |
| Chassis | High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat |
| Front axle and suspension | Multi-leaf springs with hydraulic dampers |
| Rear axle and suspension | Multi-leaf springs with hydraulic dampers |
| Brakes | Mechanical drum brakes with self-releasing park function and automatic slack adjustment |
| Steering | Single-stage rack-and-pinion steering with drag link |
| Tyres and wheels | AT 22 x 10-10 all-terrain tyres, 4-ply, K572A tread on steel rims |
| Body | High-strength composite body with an injection-moulded PP front cowl for impact resistance |
| Canopy | High-strength vacuum-formed ABS, white |
| Glazing | Flat acrylic windscreen |
| Floor | Textured rubber floor |
| Seating | High-density foam cushions in PVC leatherette |
| Steering wheel | Injection-moulded steering wheel with scorecard holder (R40) |
| Dash and instrumentation | Key switch, direction selector, ball and tee holders, cup holders and a round TFT display showing voltage, state of charge, speed and odometer |
| Lighting and signalling | Combination headlamps, indicators, combination tail lamps, horn and reversing buzzer |
| Front bumper | Injection-moulded mudguard |
| Additional standard equipment |
|

Plan beyond delivery
A vehicle is part of a bigger plan.
Start with the configuration. Then plan the order, the charging setup and the service parts that keep your fleet supported.
- 01
Define your specification
Confirm seating, body options and requirements for your market.
- 02
Plan the order
Share your quantity and destination for loading and pricing.
- 03
Match the parts
Build a service package around your model and revision.
Questions about the Heritage D HD20H
How many seats does the model Heritage D HD20H have?
The Heritage D HD20H is published in 2 and 4 seat configurations; choose the layout in your quotation.
How fast does the model Heritage D HD20H go?
Up to 32 km/h (20 mph) on the published sheet, and the top speed can be limited in the controller for your site.
What is the range of the model Heritage D HD20H?
The published base range is 70 km (43 miles) per charge, with an 8-hour charge time. Real range depends on load, gradients and driving style.
How much does the model Heritage D HD20H cost?
The Heritage D HD20H is sold wholesale by quotation. The price depends on the configuration, battery, options, quantity and destination; send your order details for a written quote.
